Cast Iron Foundry using Molding Machine in China

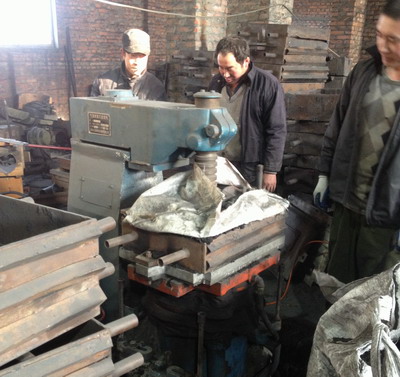

These photos are showing the molding machine, and molding process producing cast iron castings by China foundry.

fixing the metal patterns on molding machine

putting foundry sand into molding box

fill all molding box

vibrating and compaction by molding machine

put sand box off the molding machine, withdrawing from metal pattern

put top and bottom boxes together, then make a gating head, molding process completed.
